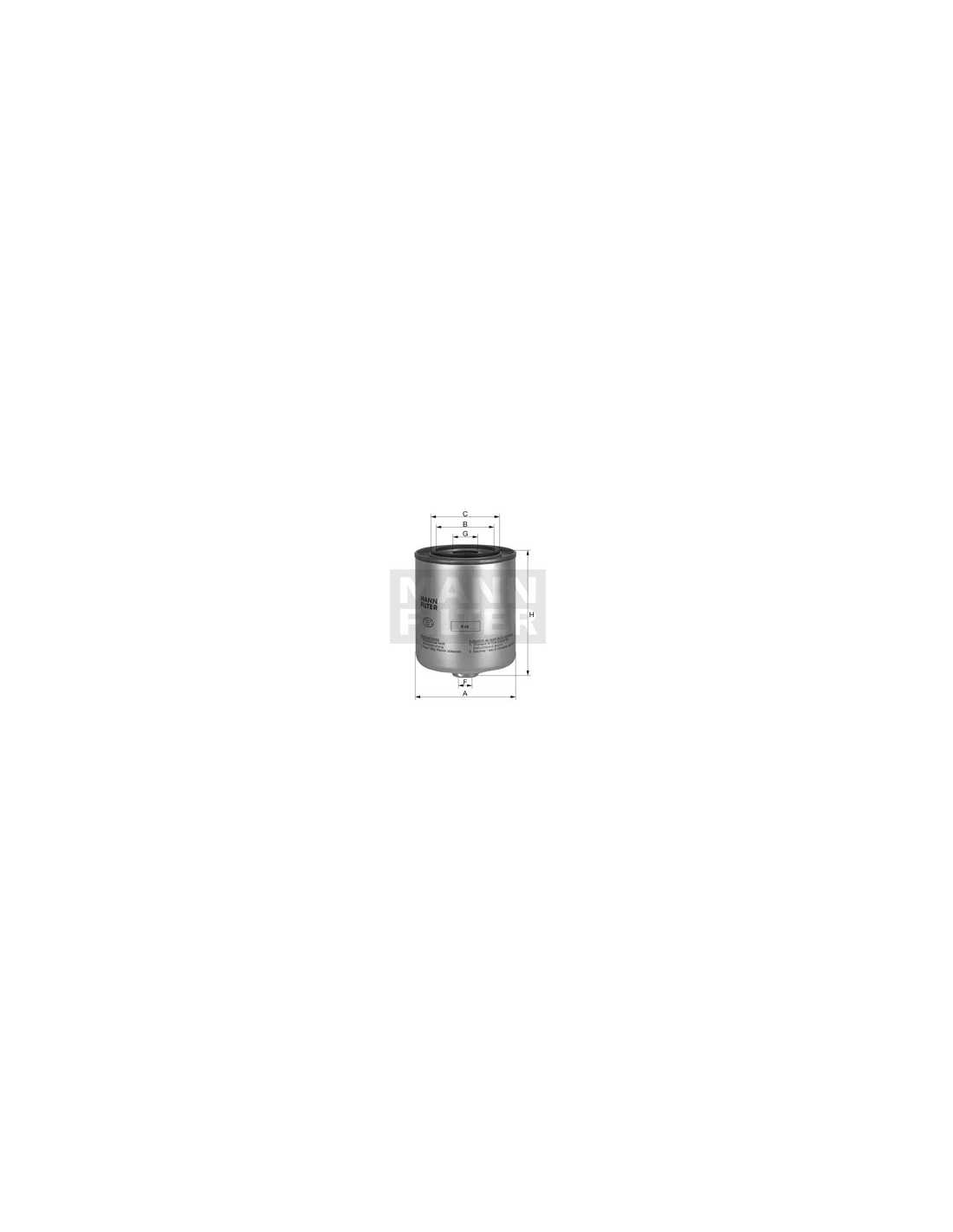

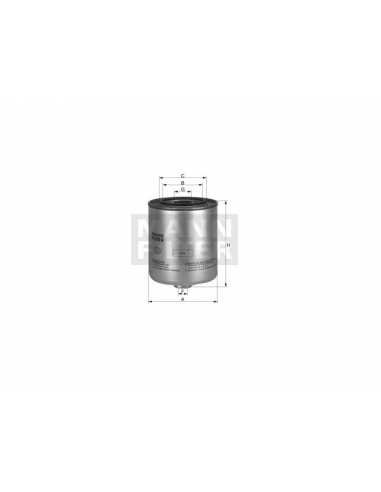

- Diámetro exterior [mm]: 65- Diám. int. 1 [mm]: 56- Diám. int. 2 [mm]: 63- Rosca, entrada: M 36 X 1.5- Rosca, salida: 3/4-16 UNF- Altura [mm]: 123
Compatibilidad OEM:
- CUMMINS: C6003112110
- KOMATSU: 600-311-2110
- MAZDA: R 2L1-13ZA5 B9A
- TOYOTA: 23390-YZZAA
Compatibilidad fabricantes:
- A.L. FILTER: ALG-2438
- ACDelco: XD 9294 E
- ALCO FILTER: SP-1080
- AMC Filter: TF-1593
- ARMAFILT: GO-72/123.0
- ASHIKA: 30-03-305
- BLUE PRINT: ADT 32341
- BOSCH: N4440
- CHAMPION: L 452/606
- CLEAN FILTERS: DN 1918
- COMLINE: CTY13021
- COOPERS: FSM 4135
- COOPERSFIAAM FILTERS: FP5432
- CROSLAND: 5067
- DELPHI: HDF541
- DENSO: DDFF1-6700
- FEBI BILSTEIN: 32068
- FIL FILTER: ZP 3153 FM
- FILMAR: SF8715
- FILTRON: PP 950
- FLEETGUARD: FF5432
- FRAM: PS8784
- GUD FILTERS: Z 548
- HENGST FILTER: H232WK
- HERTH+BUSS JAKOPARTS: J1332057
- HOFFER: 7690211
- JAPANPARTS: JFC-305S
- KOLBENSCHMIDT: 833/3-FS
- LAUTRETTE: ELG 5360
- MAGNETI MARELLI: FD 570
- MAHLE FILTER: KC 100 D
- MEAT & DORIA: 4211
- MISFAT: M413
- MOTAQUIP: VFF 387
- MULLER FILTER: FN1142
- NIPPARTS: J1332057
- P.B.R.: BG-1581
- PURFLUX: CS465
- PUROLATOR: F59236
- PZL SEDZISZOW: PDS68
- SAKURA Automotive: FC-1108
- SCT Germany: ST 322
- SOFIMA: S 4413 NR
- TECNOCAR: RN211
- TEHO: 6217
- UFI: 24.413.00
- UNIPART: GFE 5352
- VALEO: 587710
- VIC: FC-184
- WIX FILTERS: WF8218
Compatibilidad Vehículos:
MAZDA:
626 Mk V (GF):
2.0 DI TD 90CV (04/1998-10/2002) Sedán Gasóleo
2.0 TD 110CV (10/2000-10/2002) Sedán Gasóleo
2.0 Turbo DI 101CV (04/1998-10/2002) Sedán Gasóleo
626 Mk V Fastback (GF):
2.0 DITD 90CV (04/1998-10/2002) Fastback Gasóleo
2.0 TD 110CV (10/2000-10/2002) Fastback Gasóleo
2.0 Turbo DI 101CV (04/1998-10/2002) Fastback Gasóleo
626 Mk V Ranchera familiar (GW):
2.0 DITD 90CV (09/1999-10/2002) Ranchera familiar Gasóleo
2.0 TD 110CV (10/2000-10/2002) Ranchera familiar Gasóleo
2.0 Turbo DI 101CV (04/1998-10/2002) Ranchera familiar Gasóleo
323 S Mk VI (BJ):
2.0 D 71CV (09/1998-05/2004) Sedán Gasóleo
2.0 TD 90CV (09/1998-05/2004) Sedán Gasóleo
ETUDE VI (BJ):
2.0 D 71CV (09/1998-05/2004) Fastback Gasóleo
2.0 TD 101CV (01/2001-05/2004) Fastback Gasóleo
2.0 TD 90CV (09/1998-12/2001) Fastback Gasóleo
PREMACY (CP):
2.0 TD 101CV (07/2000-03/2005) Limusina Gasóleo
2.0 TD 90CV (10/1999-07/2000) Limusina Gasóleo
MPV Mk II (LW):
2.0 DI 136CV (07/2002-02/2006) Limusina Gasóleo
ATENZA (GG):
2.0 DI 136CV (06/2002-08/2007) Sedán Gasóleo
2.0 DI 121CV (08/2002-08/2007) Sedán Gasóleo
ATENZA Fastback (GG):
2.0 DI 136CV (08/2002-08/2007) Fastback Gasóleo
2.0 DI 121CV (08/2002-08/2007) Fastback Gasóleo
ATENZA Ranchera familiar (GY):
2.0 CiTD 4x4 121CV (10/2002-02/2005) Ranchera familiar Gasóleo
2.0 CiTD 4x4 136CV (10/2002-02/2005) Ranchera familiar Gasóleo
2.0 DI 136CV (08/2002-08/2007) Ranchera familiar Gasóleo
2.0 DI 121CV (08/2002-08/2007) Ranchera familiar Gasóleo
Motores MAZDA: RF3F,RF59,RF4F,RF1G,RF5C
SUBARU:
TREZIA:
1.4 D 90CV (03/2011-) Fastback Gasóleo
TOYOTA:
TACOMA II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN5_):
2.4 TD 4WD 90CV (08/1998-01/2002) Pick-up Gasóleo
HIACE IV Autobús (LH1_):
2.4 D 75CV (07/1999-08/2006) Autobús Gasóleo
2.4 D 79CV (08/1995-08/2006) Autobús Gasóleo
2.4 D 83CV (08/1995-08/2006) Autobús Gasóleo
2.4 TD (LXH12_, LXH22_) 90CV (08/1995-08/2006) Autobús Gasóleo
IPSUM (_XM10):
2.2 D (CMX10_) 90CV (08/1997-12/2001) Limusina Gasóleo
COROLLA Sedán (_E11_):
2.0 D-4D 90CV (09/2000-11/2001) Sedán Gasóleo
COROLLA Liftback (_E11_):
2.0 D-4D 90CV (09/2000-01/2002) Fastback Gasóleo
COROLLA Fastback (_E11_):
2.0 D-4D 90CV (09/2000-01/2002) Fastback Gasóleo
AVENSIS (_T22_):
2.0 D-4D (CDT220_) 110CV (10/1999-02/2003) Sedán Gasóleo
2.0 TD (CT220_) 90CV (09/1997-02/2003) Sedán Gasóleo
AVENSIS Station Wagon (_T22_):
2.0 D 115CV (09/2002-02/2003) Ranchera familiar Gasóleo
2.0 D 82CV (10/1997-05/1998) Ranchera familiar Gasóleo
2.0 D-4D (CDT220_) 110CV (10/1999-02/2003) Ranchera familiar Gasóleo
2.0 TD (CT220_) 90CV (09/1997-02/2003) Ranchera familiar Gasóleo
AVENSIS Liftback (_T22_):
2.0 D 115CV (09/2002-02/2003) Fastback Gasóleo
2.0 D-4D (CDT220_) 110CV (10/1999-02/2003) Fastback Gasóleo
2.0 TD (CT220_) 90CV (09/1997-02/2003) Fastback Gasóleo
COROLLA Wagon (__E11_):
2.0 D-4D 116CV (04/1997-10/2001) Ranchera familiar Gasóleo
2.0 D-4D 90CV (09/2000-10/2001) Ranchera familiar Gasóleo
VITZ (SCP1_, NLP1_, NCP1_):
1.4 D-4D 75CV (12/2001-09/2005) Fastback Gasóleo
HIACE SBV IV Furgón (LXH1_, RZH1_, LH1_):
2.4 D 83CV (08/1995-08/2006) Furgón Gasóleo
2.4 D (LXH12_, LXH22_) 79CV (08/1995-08/2006) Furgón Gasóleo
2.4 TD (LXH12_, LXH22_) 90CV (08/1995-08/2006) Furgón Gasóleo
ECHO VERSO (_NLP2_, _NCP2_):
1.4 D-4D (NLP22) 75CV (12/2001-09/2005) Limusina Gasóleo
RAV 4 Mk II (CLA2_, XA2_, ZCA2_, ACA2_):
2.0 D-4D 4WD 116CV (09/2001-11/2005) Todo terreno, cerrada Gasóleo
PICNIC (_CLM2_, _ACM2_):
2.0 D-4D 116CV (08/2001-08/2005) Limusina Gasóleo
RUNX (ZZE12_, NDE12_, ZDE12_):
1.4 D 90CV (07/2004-02/2007) Fastback Gasóleo
2.0 D-4D 90CV (01/2002-12/2006) Fastback Gasóleo
2.0 D-4D 110CV (01/2002-12/2006) Fastback Gasóleo
2.0 D-4D 116CV (05/2003-02/2007) Fastback Gasóleo
AXIO/ALTIS Sedán (_E12J_, _E12T_):
1.4 D-4D 90CV (07/2004-07/2007) Sedán Gasóleo
2.0 D-4D 90CV (08/2002-07/2007) Sedán Gasóleo
COROLLA Combi (_E12J_, _E12T_):
1.4 D4-D 90CV (07/2004-02/2007) Ranchera familiar Gasóleo
2.0 D-4D 90CV (01/2002-02/2007) Ranchera familiar Gasóleo
2.0 D-4D 116CV (04/2004-02/2007) Ranchera familiar Gasóleo
COROLLA Verso (ZDE12_, CDE12_):
2.0 D-4D 90CV (01/2002-05/2004) Limusina Gasóleo
2.0 D-4D 116CV (09/2001-05/2004) Limusina Gasóleo
AVENSIS Sedán (T25):
2.0 D-4D 126CV (03/2006-11/2008) Sedán Gasóleo
2.2 D-4D 150CV (10/2005-11/2008) Sedán Gasóleo
2.2 D-CAT 177CV (07/2005-11/2008) Sedán Gasóleo
AVENSIS Combi (T25):
2.0 D-4D 126CV (03/2006-11/2008) Ranchera familiar Gasóleo
2.2 D-4D 150CV (10/2005-11/2008) Ranchera familiar Gasóleo
AVENSIS (T25_):
2.0 D-4D 126CV (03/2006-11/2008) Fastback Gasóleo
2.2 D-4D 150CV (10/2005-11/2008) Fastback Gasóleo
2.2 D-CAT 177CV (07/2005-11/2008) Fastback Gasóleo
COROLLA Verso (ZER_, ZZE12_, R1_):
1.4 D-4D 90CV (03/2004-03/2009) Limusina Gasóleo
2.2 D-4D 177CV (10/2005-03/2009) Limusina Gasóleo
2.2 D-4D 136CV (10/2005-03/2009) Limusina Gasóleo
VITZ (SCP9_, NSP9_, KSP9_, NCP9_, ZSP9_):
1.4 D-4D 90CV (08/2005-) Fastback Gasóleo
RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_):
2.2 D-4D 150CV (12/2008-) Todo terreno, cerrada Gasóleo
2.2 D-4D 4WD 136CV (03/2006-) Todo terreno, cerrada Gasóleo
2.2 D-4D 4WD 150CV (12/2008-) Todo terreno, cerrada Gasóleo
2.2 D-CAT 4WD 177CV (03/2006-) Todo terreno, cerrada Gasóleo
HILUX SURF Todo terreno, cerrada (ZN13_, LN9_, RN1_, YN8_, L:
2.4 TD 4WD 90CV (08/1989-11/1995) Todo terreno, cerrada Gasóleo
AVENSIS Sedán (ZRT27, ADT27):
2.0 D-4D 126CV (11/2008-) Sedán Gasóleo
2.2 D-4D 150CV (11/2008-) Sedán Gasóleo
2.2 D-4D 177CV (11/2008-) Sedán Gasóleo
2.2 D-4D 150CV (11/2008-) Sedán Gasóleo
AVENSIS Ranchera familiar (ZRT27, ADT27):
2.0 D-4D 126CV (02/2009-) Ranchera familiar Gasóleo
2.2 D-4D 150CV (02/2009-) Ranchera familiar Gasóleo
2.2 D-4D 177CV (02/2009-) Ranchera familiar Gasóleo
2.2 D-4D 150CV (02/2009-) Ranchera familiar Gasóleo
IQ (KPJ1_, NGJ1_, KGJ1_, NUJ1_):
1.4 D-4D 90CV (01/2009-) Fastback Gasóleo
VERSO (_AUR2_, _ZGR2_):
2.0 D-4D 126CV (04/2009-) Limusina Gasóleo
2.0 D-4D 124CV (11/2012-) Limusina Gasóleo
2.2 D-4D 150CV (04/2009-) Limusina Gasóleo
2.2 D-CAT 177CV (04/2009-) Limusina Gasóleo
IST (NSP1_, NLP1_, ZSP1_, NCP11_):
1.4 D-4D 90CV (04/2009-) Fastback Gasóleo
1.4 D-4D 4WD 90CV (04/2009-) Fastback Gasóleo
RACTIS (NLP12_, NCP12_, NSP12_):
1.4 D4-D 90CV (11/2010-) Limusina Gasóleo
HIACE IV Caja/Chasis (LXH1_, RCH1_, KLH1_):
2.4 D 75CV (07/1999-08/2006) Caja/Chasis Gasóleo
2.4 D 83CV (08/1995-08/2006) Caja/Chasis Gasóleo
RAV 4 IV (ZSA4_, ALA4_):
2.0 D4-D 124CV (12/2012-) Todo terreno, cerrada Gasóleo
2.0 D4-D 4WD 124CV (11/2013-) Todo terreno, cerrada Gasóleo
2.2 D4-D 4WD 150CV (12/2012-) Todo terreno, cerrada Gasóleo
Motores TOYOTA: 2L-T,2L,3C-TE,1CD-FTV,2C-TE,2C-T,1ND-TV,1AD-FTV,2AD-FTV,2AD-FHV,2L-TE
